Equilibrium
Drive Filtration
Equeron automatic self-cleaning screen filters remove suspended solids at 10 to 1,500 micron at flow rates up to 1,000 m3/hr (4,400 GPM)
Equilibrium Drive™ implements technology leading design via automated suction nozzle flushing of the filter screen without limit switches, hydraulic pistons or electric motors.

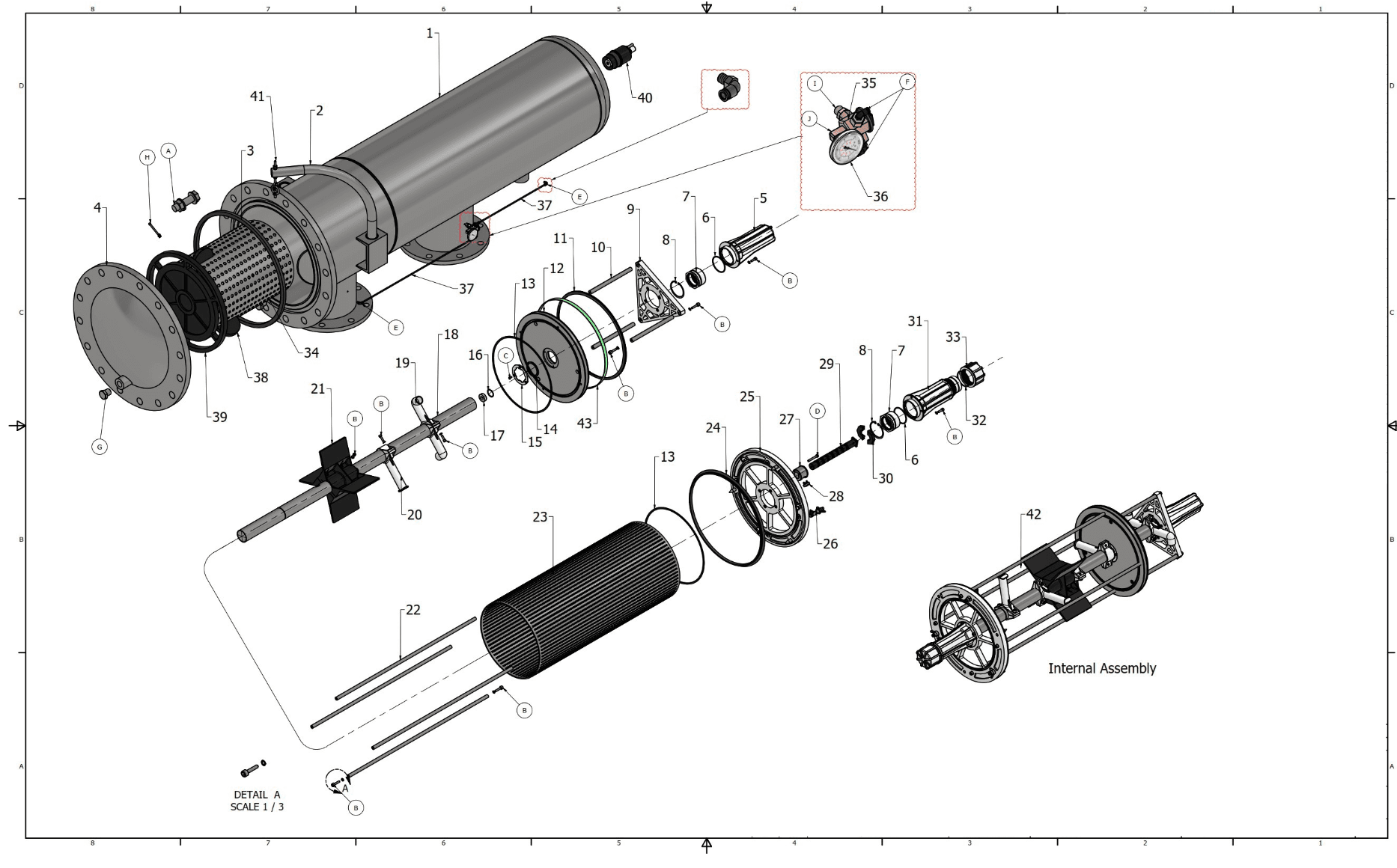

HOW IT WORKS

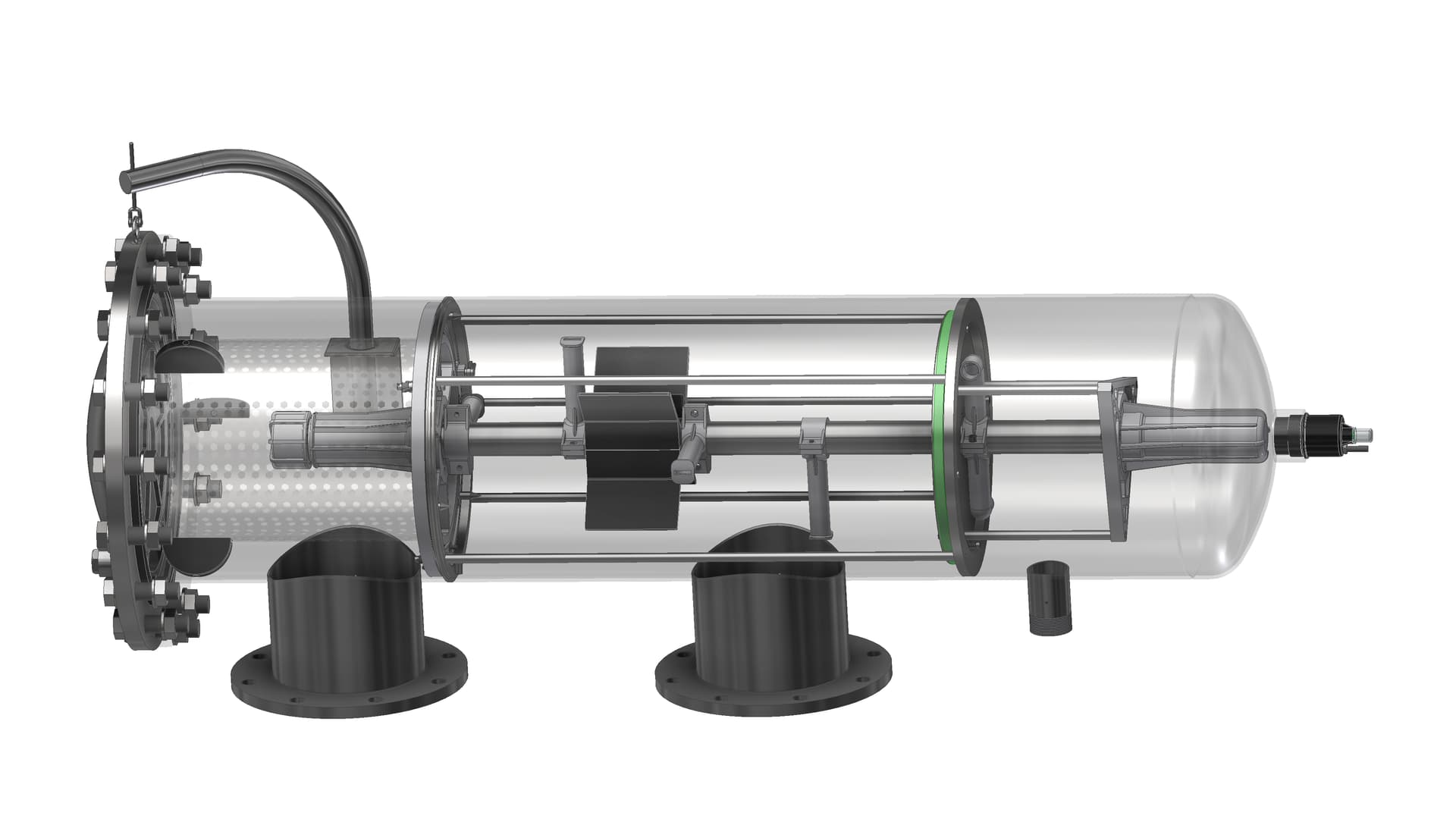

1. Equeron filter body is full dip passivated 304 stainless steel.
2. The internal assembly is hydraulicly separated into two zones – filter screen and flush motor,
3. Normal operation: Dirty water enters the inlet, passes through the screen and exits the outlet. The flush valve is closed.
4. Flush Cycle: When the pressure differential across the filter screen exceeds 7 psi, the flush valve is opened, engaging the flush motor.
5. Flush Cycle: Water flows through the suction nozzles and rotates the nozzles across the screen. Sediments travel from the dirty screen out the flush. The filtration process remains uninterrupted.
6. Normal Operation: After a 15 second flush cycle, the flush valve closes and the filter returns to normal operation
HOW IT WORKS

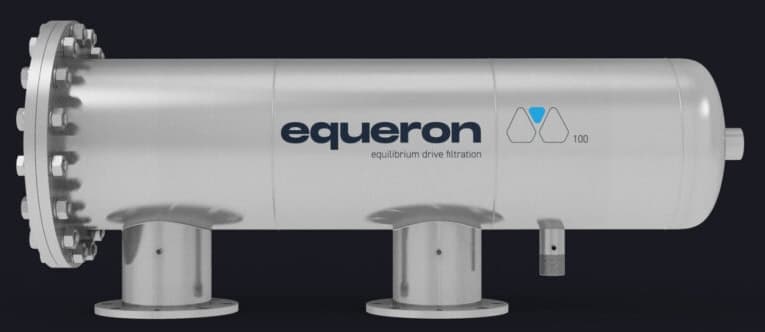

Automatic self-cleaning screen filters
The Equeron automatic self-cleaning screen filter range operates from 10 to 1,500 micron offering flow rates from 50 to >1,000 m3/hr (220 to 4,400 GPM).
The Equilibrium Drive™ provides technology leading design:
– No electric motors
– No limit switches
– No hydraulic pistons
– No penetration of the filter body
(except for water connections)
Equilibrium Drive™ eliminates the need for seals on external penetrations – removing the risk of fouling, degradation and subsequent failure (and leaks). Equeron filters are manufactured from full dip passivated 304 stainless steel, with other options available on request.
Case Study
Paradise Springs Golf Resort, Malaysia
Overview
The Paradise Springs Golf Resort is one of Malaysia’s premier courses with 36 holes, resort style accommodation and associated facilities.
In total, the course occupies 70 hectares under irrigation via a variety of systems including wide radius trigger sprayers, localised radial sprayers and drip irrigation. The filtration plant also serves the accommodation facilities.
– Flow rate = 120 L/s
– Micro rating = 100 micron
Product
Equeron installed the Equeron 240 in early 2024. The Equeron filter replaced an existing self-cleaning filter. Specifications:
Max Flow rate = 271 L/s (119 GPM)
Micro rating = 100 micron
Result
The Equeron 240 has run without fault since installation. System data shows a total of 6,314 flush cycles over the first 12 month period.
The ground manager has commented that it is one piece of equipment he hasn’t had to worry about throughout the period of operation.
Equeron conducted a full pull down service after the first 12 months operation and there was no replacement parts required. The filter was returned to service within 1 hour.
OUR PRODUCTS
ABOUT US
Precision engineered and built to last
Equeron provides advanced water filtration solutions specifically designed for irrigation and industrial systems. Designed in the USA, our team brings extensive industry expertise and a commitment to innovation, ensuring our products deliver reliable and efficient performance.
Equeron filters are manufactured from full dip passivated 304 stainless steel.
OUR PEOPLE
Meet the team behind Equeron — a group of industry experts with a shared passion for delivering innovative water filtration solutions, backed by years of experience in the field.
Glenn Dobbs
Founder / President
Glenn has been working in the filtration industry product design and development for over 40 years. He has experience with all types of self-cleaning suction scanner products, industries & applications.
Glenn was President/Owner of VAF Filtration – prior to its acquisition by Evoqua/Xylem in 2016 – where he was instrumental to improvements made to the Equilibrium Drive™ technology.
Prior to today:
- Graduated 1976 Cal Poly San Luis Obispo BS Agricultural Hydraulics Engineering
- Graduated 1978 MS Utah State University Irrigation and Drainage Engineering Dept of Civil Engineering 1978 to 1983 Rain Bird International Middle East Manager. Established Rain Bird Middle East
- 1984 – 1988 Utah State University Dept of Civil Engineering Advanced Hydraulics
- 2000 – 2002 Amiad Filtration Sales Manager
- 2003 to 2016 President/Owner VAF Filtration Systems
Glenn has been working in the filtration industry product design and development for over 40 years. He has experience with all types of self-cleaning suction scanner products, industries & applications.
READ MORE
Glenn was President/Owner of VAF Filtration – prior to its acquisition by Evoqua/Xylem in 2016 – where he was instrumental to improvements made to the Equilibrium Drive™ technology.
Prior to today:
- Graduated 1976 Cal Poly San Luis Obispo BS Agricultural Hydraulics Engineering
- Graduated 1978 MS Utah State University Irrigation and Drainage Engineering Dept of Civil Engineering 1978 to 1983 Rain Bird International Middle East Manager. Established Rain Bird Middle East
- 1984 – 1988 Utah State University Dept of Civil Engineering Advanced Hydraulics
- 2000 – 2002 Amiad Filtration Sales Manager
- 2003 to 2016 President/Owner VAF Filtration Systems
Richard Rech
Founder
Rick has been working in the filtration industry for over 40 years. His expertise is in product design application, commissioning and support.
Rick was an Engineer/Owner of VAF filtration prior to its acquisition by Evoqua/Xylem in 2016.
Rich provides Equeron clients application, commissioning and support advice and assistance. He is familiar with the strengths/weaknesses of all types of self-cleaning suction scanner products.
Prior to today:
- Graduated 1982 Purdue University BS Mechanical Engineering
- Coors Mechanical Engineer 1982 to 85
- VAF Filtration Systems 1985 to 2016 – Managed product engineering, production and after sales support.
Rick has been working in the filtration industry for over 40 years. His expertise is in product design application, commissioning and support.
READ MORE
Rick was an Engineer/Owner of VAF filtration prior to its acquisition by Evoqua/Xylem in 2016.
Rich provides Equeron clients application, commissioning and support advice and assistance. He is familiar with the strengths/weaknesses of all types of self-cleaning suction scanner products.
Prior to today:
- Graduated 1982 Purdue University BS Mechanical Engineering
- Coors Mechanical Engineer 1982 to 85
- VAF Filtration Systems 1985 to 2016 – Managed product engineering, production and after sales support.
Get in touch today
Have questions or need more information about our products? We’re here to help! Fill out the form here with your product enquiries, and a member of our team will get back to you promptly. We look forward to assisting you with your filtration needs.
